As a professional supplier, the Siemens 6ES7616-2QL10-0AB4 provided by Hanyite Company is "one of the top-performing CPU modules in the S7-300 series". Its core value lies in "providing powerful data processing capabilities, fast program execution speed and rich communication interfaces for large and complex automation projects." Its core task is to serve as an efficient and reliable command center, precisely coordinating and controlling every link in the entire production process. Welcome to purchase if needed.
This Siemens 6ES7616-2QL10-0AB4 "preferred core". It is highly suitable for process control in large-scale production lines, complex material conveying systems, high-end equipment with multi-axis linkage, as well as scenarios that require extensive data processing and closed-loop control. In industries such as automotive manufacturing, pharmaceuticals, water treatment, and metallurgy, it is the key to ensuring the efficient and stable operation of the system.

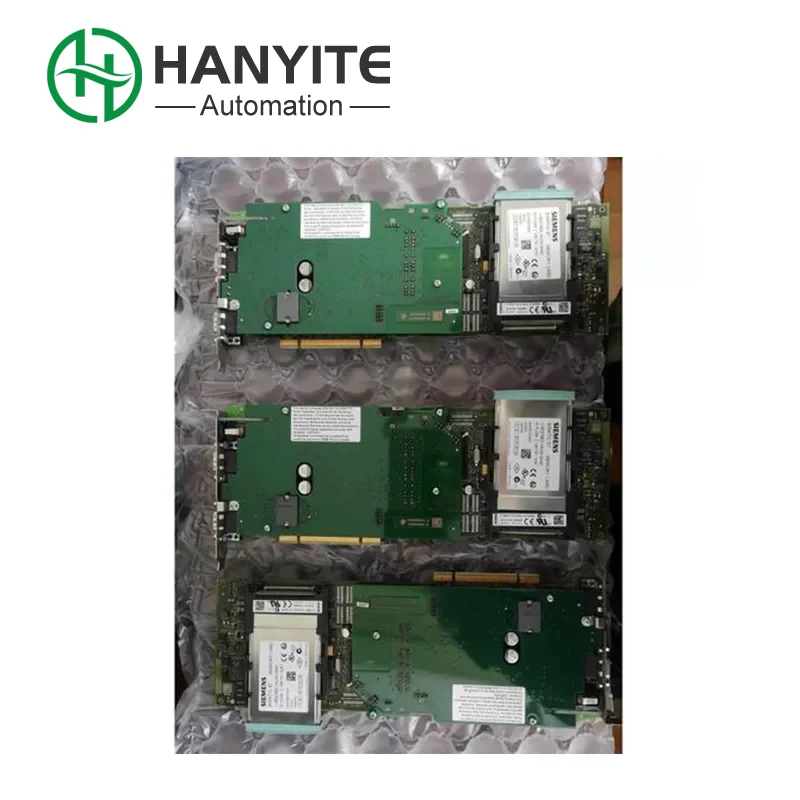

The first impression this Siemens 6ES7616-2QL10-0AB4 gives is "substantial" and "professional". Its volume is larger than that of ordinary cpus in the same series because it integrates more functions. The front is equipped with a very rich array of status indicator lights (leds), which can clearly display the CPU's operating status, communication status, fault information, etc. Its memory card slots, MPI/DP interfaces, etc. are all neatly arranged, exuding a sense of rigor of high-end equipment everywhere.
This Siemens 6ES7616-2QL10-0AB4 of ours is guaranteed to be "100% genuine" and "outstanding in performance". There are some cpus of unknown origin on the market, which may pose risks of being used, having programs locked or experiencing unstable performance. All the products we offer come from the official authorized channels of Siemens, ensuring that every CPU you purchase has complete performance and an official warranty.
|
Rated voltage |
24 V DC |
|
Maximum current per group |
3 A |
|
Maximum leakage current per group |
10 µA |
|
Maximum voltage drop in the on state |
0.6 V |
|
Switching capacity (resistive load) |
24 V DC / 3 A (cos φ = 1) |
|
Switching capacity (inductive load) |
24 V DC / 0.5 A (cos φ = 0.4, L/R = 7 ms) |
|
Mechanical life (no current) |
10,000,000 on/off cycles |
|
Electrical life (rated load) |
100,000 on/off cycles |
|
Contact material |
Silver cadmium oxide (AgCdO) |
|
Channel-to-channel isolation |
No |
|
Base-to-group isolation |
Yes (isolation between two groups) |
|
Isolated from backplane bus |
Yes |
|
Connection type |
Pluggable screw terminals |
|
Terminal type |
2 rails (2-conductor) |
|
Terminal cross section |
0.2 mm² … 2.5 mm² (AWG 24 … 12) |
|
Front |
IP20 |
|
Rear |
IP00 |
|
Operating temperature |
0 °C to 60 °C |
|
Storage temperature |
-40 °C to 70 °C |
|
Relative humidity |
25 to 70 % (non-condensing) |
|
Pollution degree |
2 |
|
Altitude |
2000 m (according to IEC 61131-2) |
