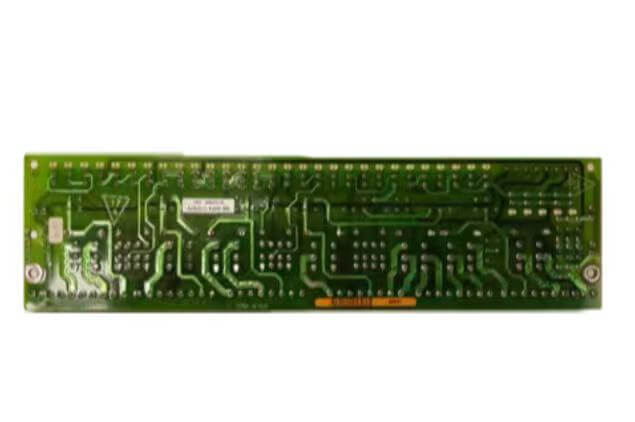

The General Electric DS200RTBAG3AEB device is specifically designed for the Speedtronic Mark V system. It acts as a "signal relay station" and can be installed in the cabinet to connect all the wires from the on-site sensors and switches. The board has rows of terminals where the disordered signals are sorted out and then accurately transmitted to the core board for processing. Without this device, the input and output part of the system would simply not function. If you want to purchase, contact Hanyite Automation Technology! The products we supply are all reliable original equipment, fully meeting all the strict requirements of the factory. We currently have sufficient stock of this model, and the order can be shipped immediately. As long as you have a need, feel free to contact us at any time!
This terminal board is specifically designed for the GE Mark V system. It is a perfect match with the control board card of the original system. Once connected, it can be used without any worries about interface mismatch or signal transmission failure. General Electric DS200RTBAG3AEB is also very convenient to integrate into the system. It has standard installation interfaces and can be securely fixed on the rails or backplane of the cabinet. Since it is an original design from the manufacturer, it can seamlessly connect with other modules in the system, such as those data processing motherboards. There is no need for modification or connection conversion, and once installed, the signal lines can be neatly arranged.
Its value mainly lies in making the wiring neat and orderly, making maintenance extremely convenient. Without this terminal board, the signal lines in the field would directly connect to the control board, and the lines would definitely be in a complete mess, and it would be easy to damage the board. With it, it's like a transfer station, blocking external interference and protecting the delicate core control board. At the same time, if any line has a problem in the future, it will be much easier to troubleshoot and replace it on this terminal board, without having to dismantle the expensive main board. This greatly reduces the failure rate of the system and also shortens the downtime for maintenance, saving both time and money.
The core function is the connection and distribution of signals. General Electric DS200RTBAG3AEB is responsible for receiving various analog or digital signals from the site, such as voltage, current signals, or contact signals. Then, it has specific circuit loops internally to safely and accurately transfer these signals to the processing boards at the rear end. Additionally, it usually has some test points or indicator circuits to facilitate technicians to measure the normality of the signals using a multimeter, playing a role in signal aggregation and safety isolation.
1. The most common example is the signal lines used to connect various speed measurement and vibration measurement sensors in the control cabinet of a power plant's steam turbine.
2. It is also used in the control stations of large chemical plants, which are responsible for accurately transmitting the instrument signals from the site into the control system.
3. The transmission system of the rolling machines in the steel factory is often seen with it. General Electric DS200RTBAG3AEB mainly handles various input and output signals related to motor drives.
4. It is also indispensable in the excitation system of power substations. As a key interface component connecting externally to the control system, it plays a crucial role.
5. For all the old industrial renovation sites that require upgrading or maintenance of the GE Mark V system, this device needs to be used to replace the aging wiring components.
